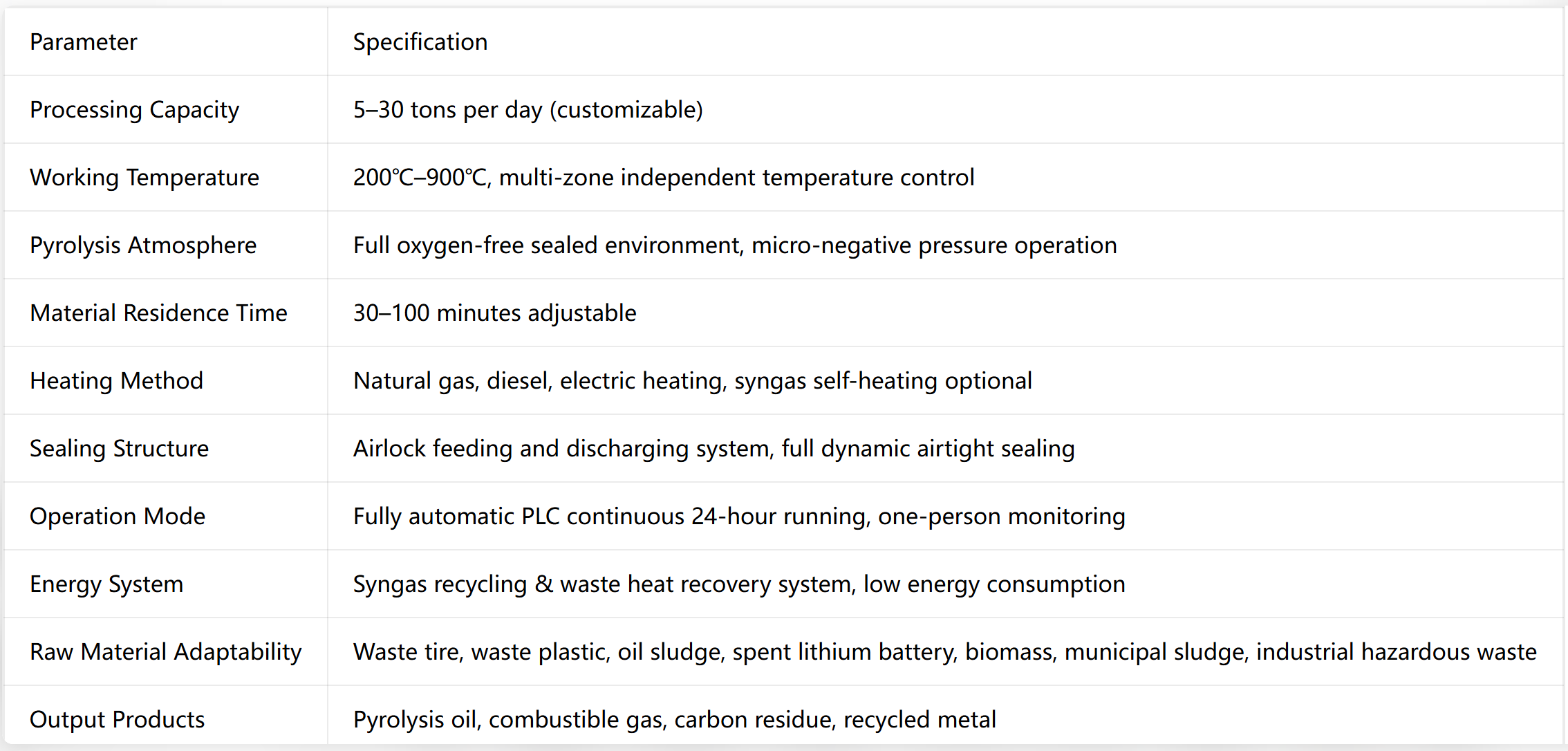

Parameter

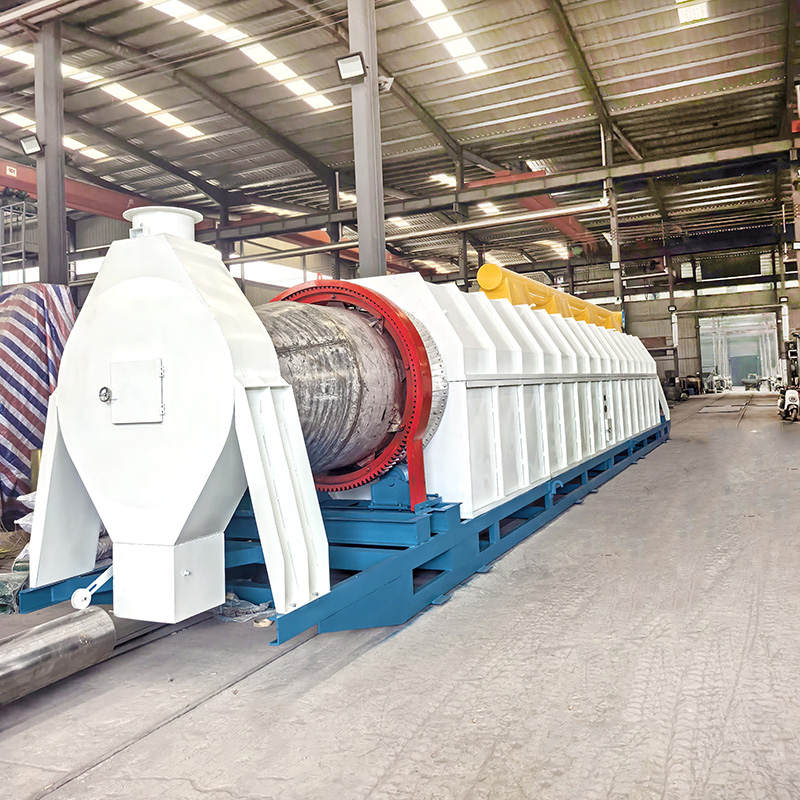

Rotary Oxygen-Free Pyrolysis Furnace is a continuous sealed high-temperature pyrolysis equipment. The slowly rotating kiln drum turns and stirs materials evenly. Under fully oxygen-isolated sealed conditions, organic solid waste undergoes complete thermal decomposition. Raw materials go through drying, pyrolysis and carbonization, converted into syngas, pyrolysis oil, solid carbon and recyclable metals. It realizes harmless treatment, volume reduction and resource recovery of waste.It handles spent lithium batteries, oil sludge, waste plastic, tires, biomass straw, industrial hazardous waste and municipal sludge. Multiple heating modes (gas, diesel, electromagnetic heating) optional, customized full system for different capacity demands.
Indoor LED Screen Advantages
Full dynamic airtight sealing with airlock feeding & discharging system, effectively prevent oxygen infiltration. Stable oxygen-free working atmosphere inhibits dioxin formation at source, lower exhaust treatment cost, compliant with global environmental standards.
Built-in lifting flights. Rotary design avoids local overheating and coking on inner wall. Material residence time adjustable from 30–100min for sufficient pyrolysis. Higher oil yield & metal recovery rate compared with fixed-bed pyrolysis reactor.
PLC automatic control with multi-zone independent temperature regulation (200–900℃). Interlinked feeding, pyrolysis, cooling and discharging. 24h continuous operation with only one operator on duty, save labor cost.
Self-circulating energy system: pyrolysis syngas recycled as heating fuel to cut external energy consumption. Waste heat recovery for raw material pre-drying, excellent long-term economic benefits.
Wide raw material adaptability. Modular design with daily capacity from 5–30 tons. Flexible combination of heating, condensation and flue gas cleaning system for pilot test and large industrial projects.
